Specifications
- high precision in torque regulation
- small dimensions and clean operation
- an ideal solution for the printing industry and flexo printing machines
- brakes do not produce any dirt and dust

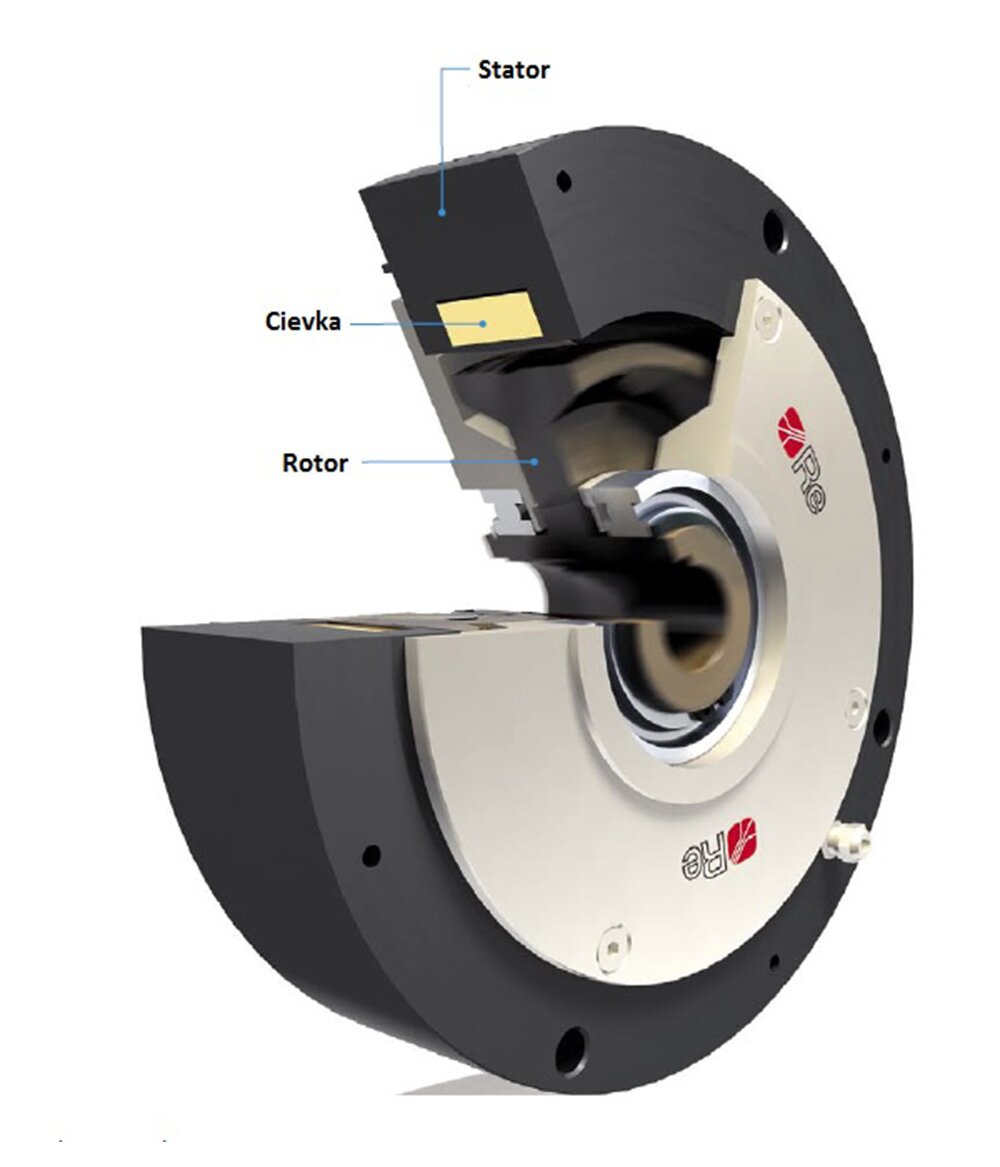

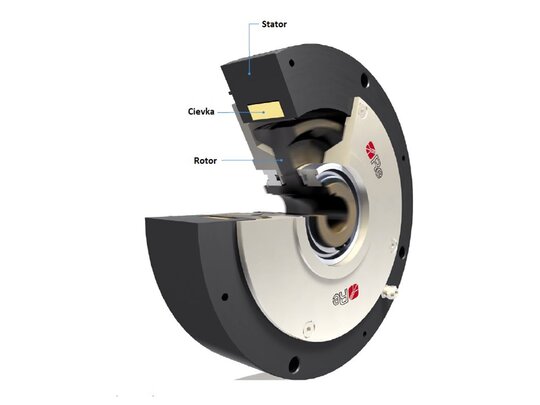

ELEFLEX electromagnetic powder brakes and clutches have been the most used brakes on the market for more than 20 years. The continuous development of these brakes guarantees high precision in torque regulation, small dimensions and clean operation. The brakes have the lowest residual torque, making them the most innovative and quality product in their category on the market.
They are the ideal solution for the printing industry, flexo printing machines and wherever hygienic regulations are taken into account, such as in the packaging of food, medicine and in the production of packaging.
Advantages: high precision in torque regulation, compact dimensions, brakes do not produce any dirt and dust
Technical parameters
| Model | Torque | Residual moment | Current | Resistance | PWM voltage | Heat dissipation | Drawing | 3D model |
|---|---|---|---|---|---|---|---|---|
| B/C.20 | 2 Nm | 0.04 Nm | 1 A | 24 Ohms | 24V | 30W | Drawing | |
| B/C.53 | 5 Nm | 0.3 Nm | 1 A | 24 Ohms | 24V | 70 W | Drawing | |
| B/C.55 | 5 Nm | 0.04 Nm | 1 A | 24 Ohms | 24V | 75 W | Drawing | |

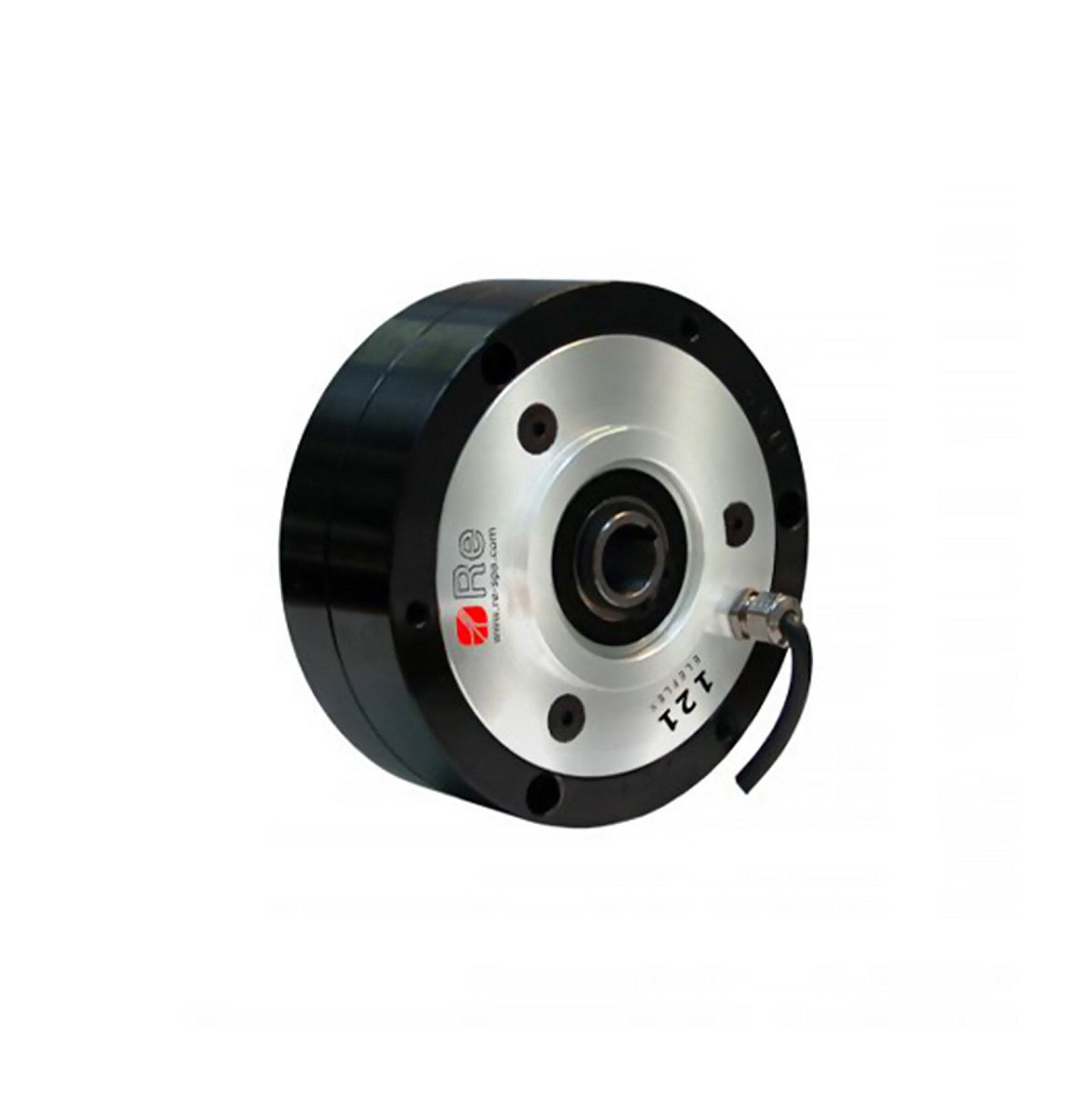

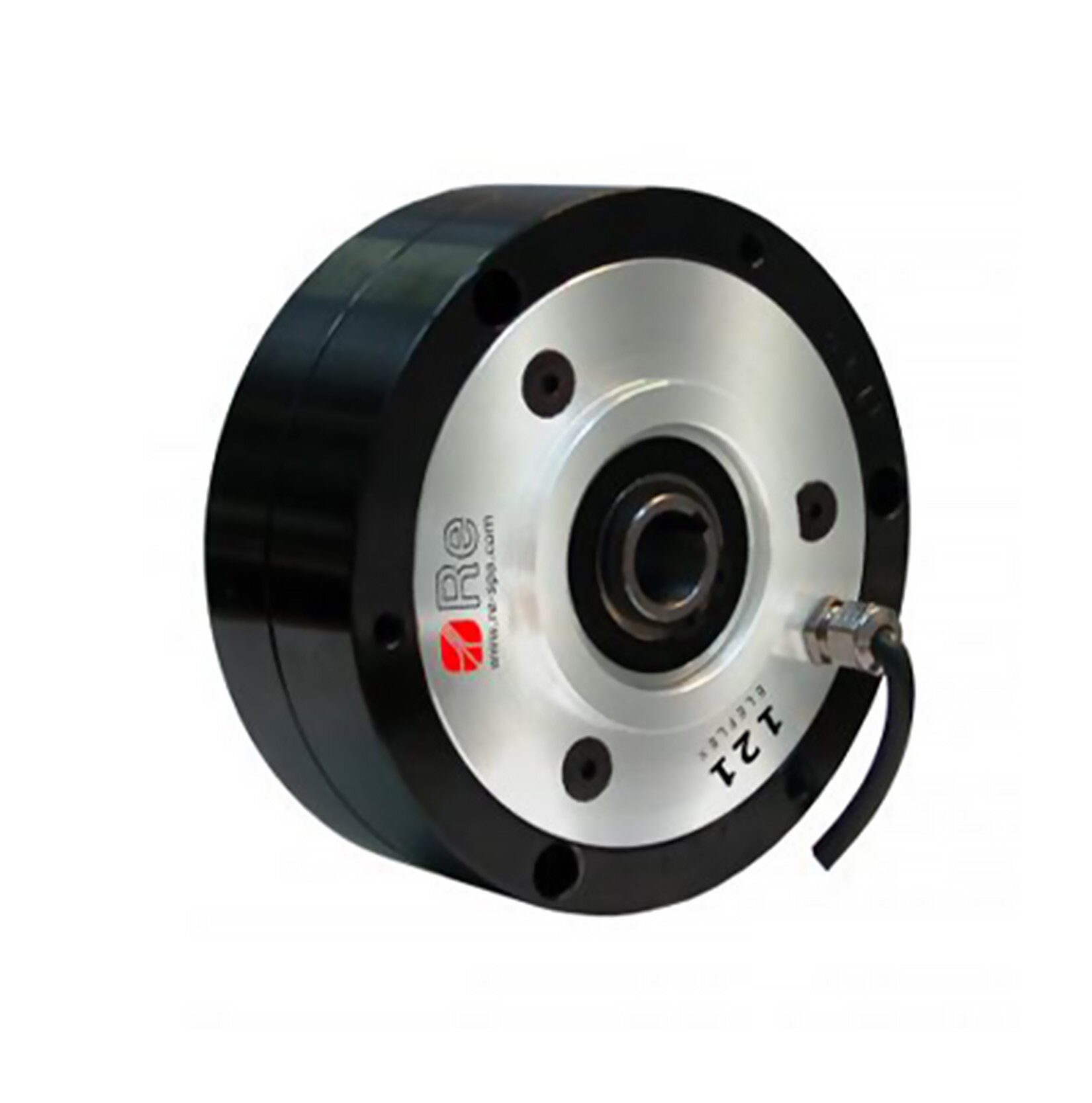

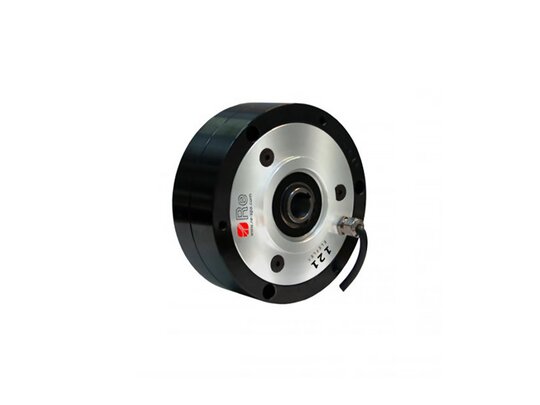

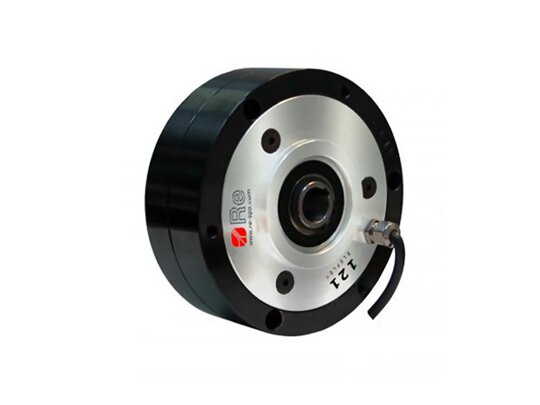

| B/C.121 | 12 Nm | 0.06 Nm | 1 A | 24 Ohms | 24V | up to 350 W | Drawing | 3D |
| B/C.351 | 35 Nm | 0.2 Nm | 1 A | 24 Ohms | 24V | up to 500 W | Drawing | 3D |

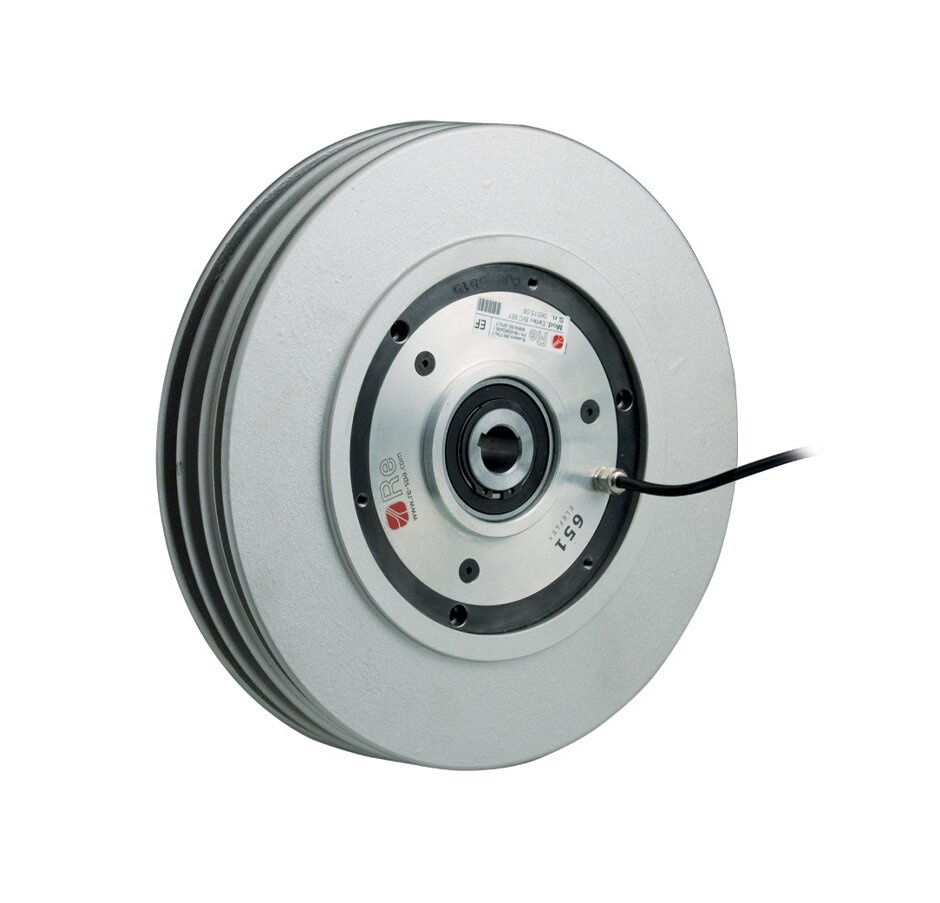

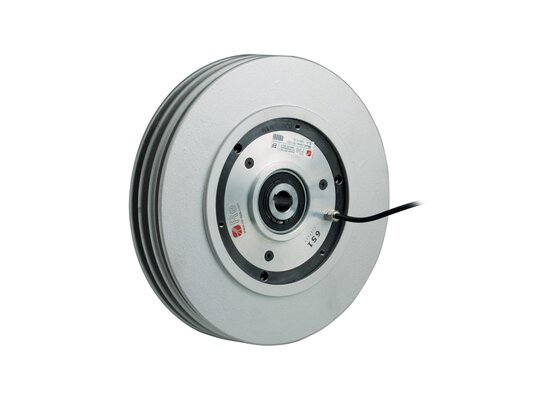

| B/C.651 | 65 Nm | 0.4 Nm | 1 A | 24 Ohms | 24V | up to 800 W | Drawing | 3D |
| B/C.1201 | 120Nm | 0.5 Nm | 1 A | 24 Ohms | 24V | up to 1300 W | Drawing | |
| B/C.1701 | 170 Nm | 0.5 Nm | 1 A | 24 Ohms | 24V | up to 1500 W | Drawing | |
| B/C.2500 | 250 Nm | 3 Nm | 1 A | 24 Ohms | 24V | up to 2000 W | Drawing | |
