Specifications
- designed and manufactured from high quality materials
- long service life, perfect cut and reduced maintenance costs
- important dimensions of knives and types of storage
Detailed specifications
We offer a wide range of bottom knives that are designed and manufactured from high quality materials, from standard 52100 steel to carbide steel. The quality of the material ensures a long service life, a perfect cut and reduced maintenance costs. Different sizes of knives and types of storage are available, which ensures perfect cut quality regardless of the material being processed.

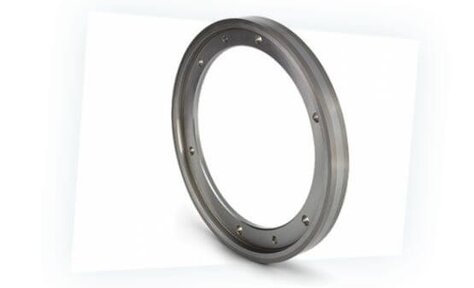

Lower knives with one or two cutting edges
Use = As lower knives for cutting by shearing
Grinding = One or two cutting edges - 4 ° undergrinding
Clamping = Free mounting, Eccentric, Screw-on, Multilock (screw and two tightening flanges)
Dimension = 45 x 25 x 10 mm – 202 x 102 x 40 mm
Material = Tool steel 1.2067 (100Cr6) – Tungsten Carbide

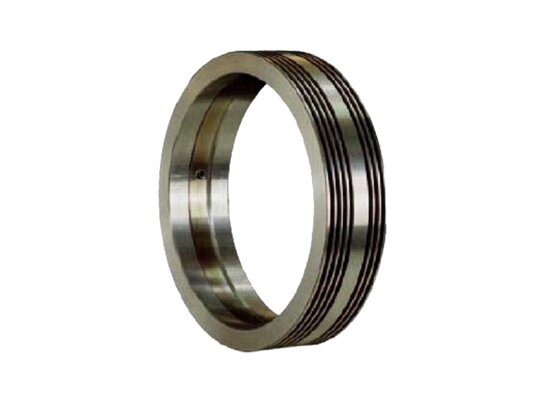

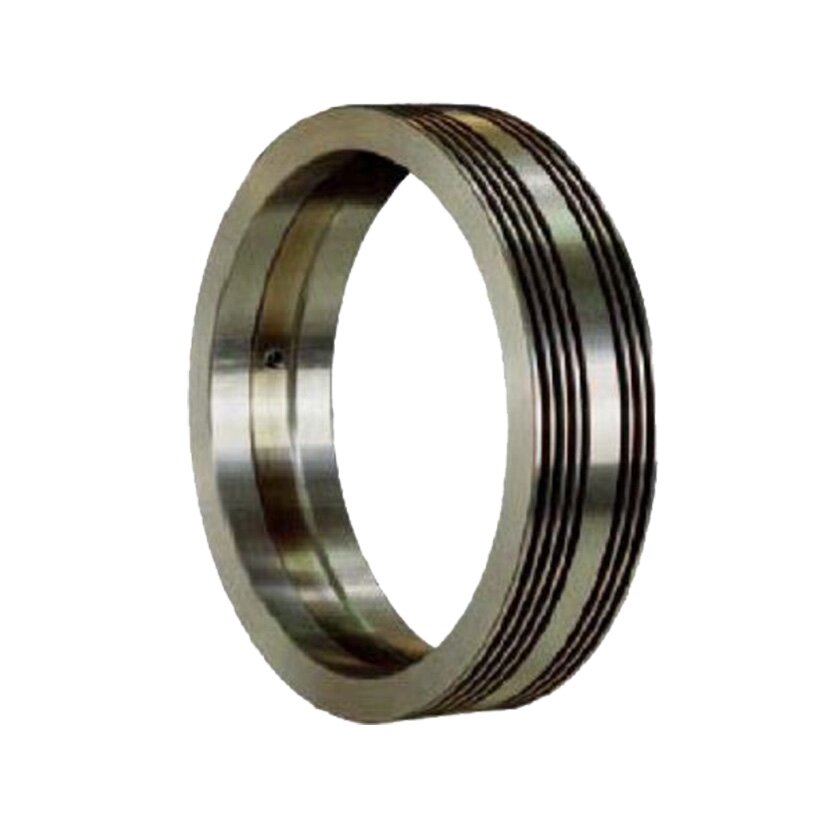

Lower knives with multiple cutting edge
Use = As lower knives for rewinders with belted material
Grinding = Edges 2 + 3 mm, 5 + 5 mm, 10 + 10 mm and others - undergrinding 4 °
Clamping = Free mounting, Screw-on, Multilock (screw and two tightening flanges)
Size = 90 x 60 x 50 mm – 500 x 460 x 200 mm
Material = Tool steel 1.2067 (100Cr6) – HSS

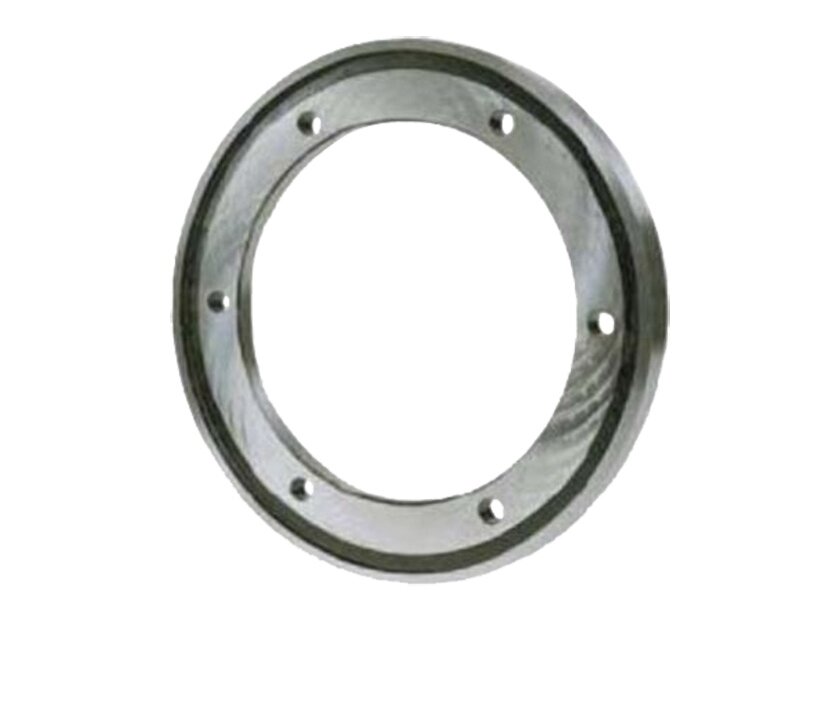

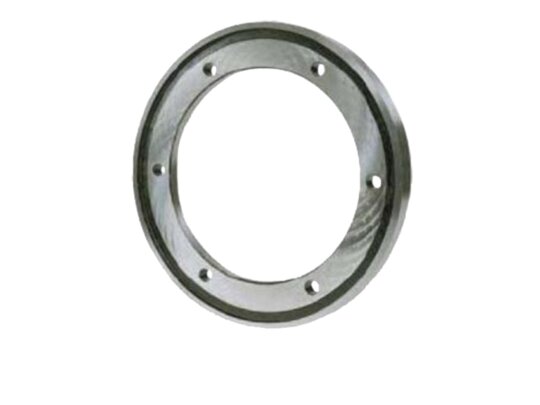

T - shape for the engine
Use = As lower knives for rewinders with individual driven knives
Grinding = Edges 2 + 3 mm, 5 + 5 mm, 10 + 10 mm and others - undergrinding 4 °
Clamping = Free mounting, Screw-on, Multilock (screw and two tightening flanges)
Size = 180 x 160 x 30 mm – 280 x 188 x 30 mm
Material = HSS – Tungsten Carbide

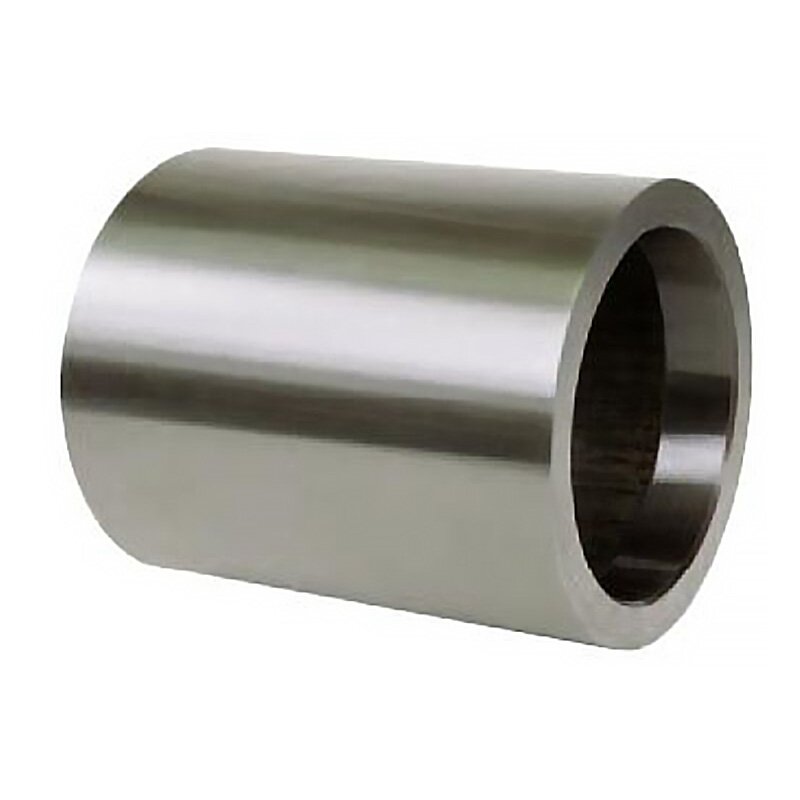

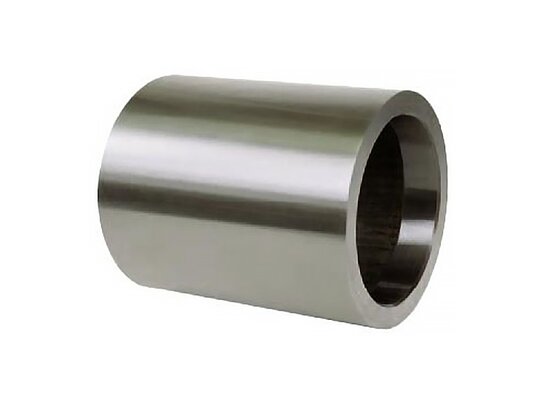

Contrast shafts and sleeves
Use = As counters for pressure cutting knives
Grinding = Smooth polished knives with high hardness
Clamping = Free side-by-side storage, On screw
Size = 100 x 60 x 200 mm – 250 x 190 x 200 mm
Material = D2 (12% Cr) – HSS
