Specifications
- world leader in the handling of cable drums, cable reels, paper rolls, structures on wheels, but also airplanes
Detailed specifications

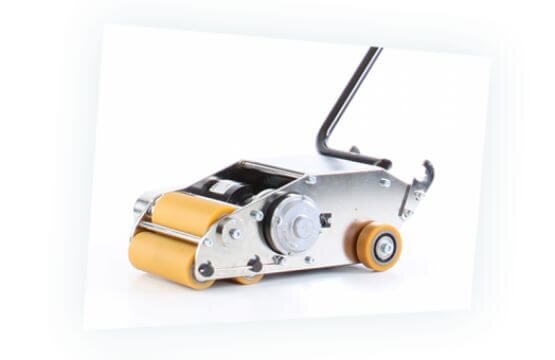

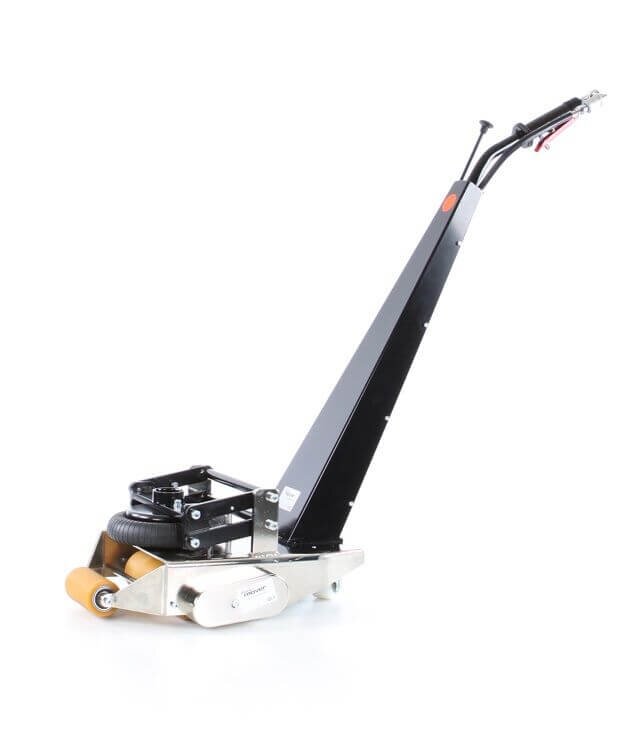

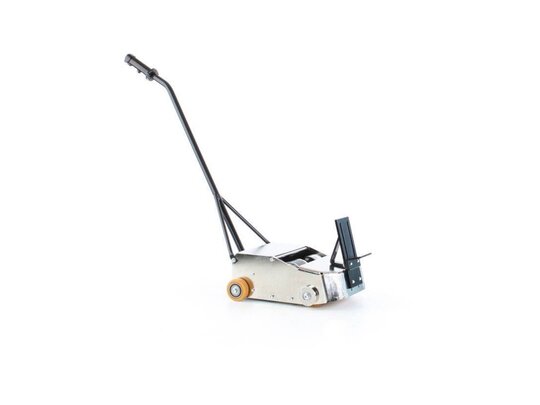

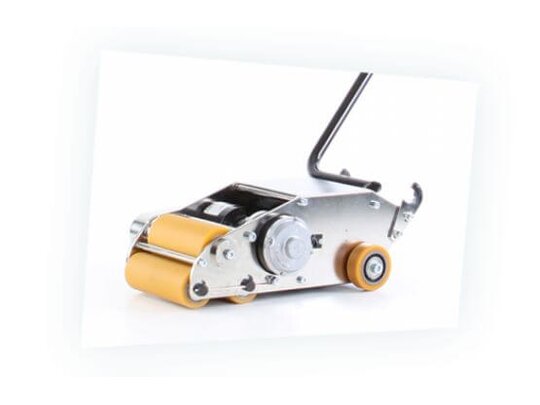

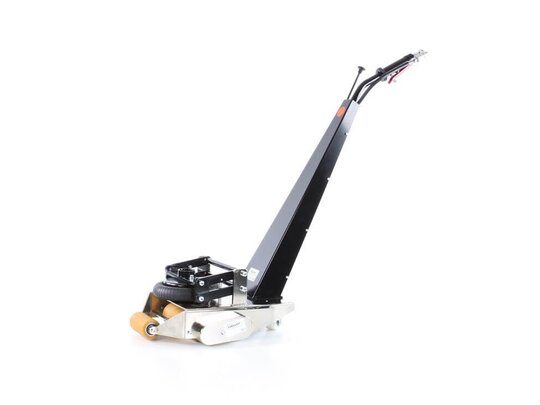

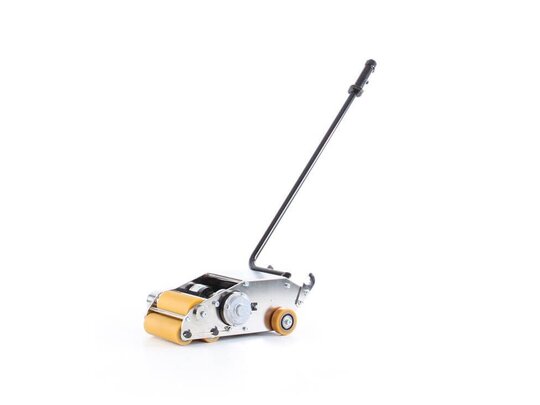

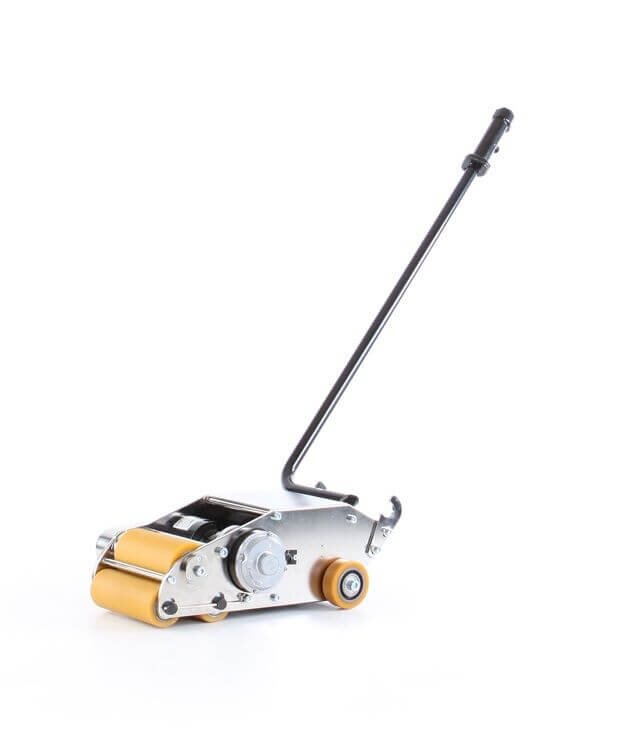

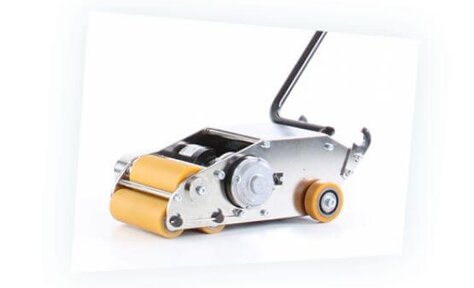

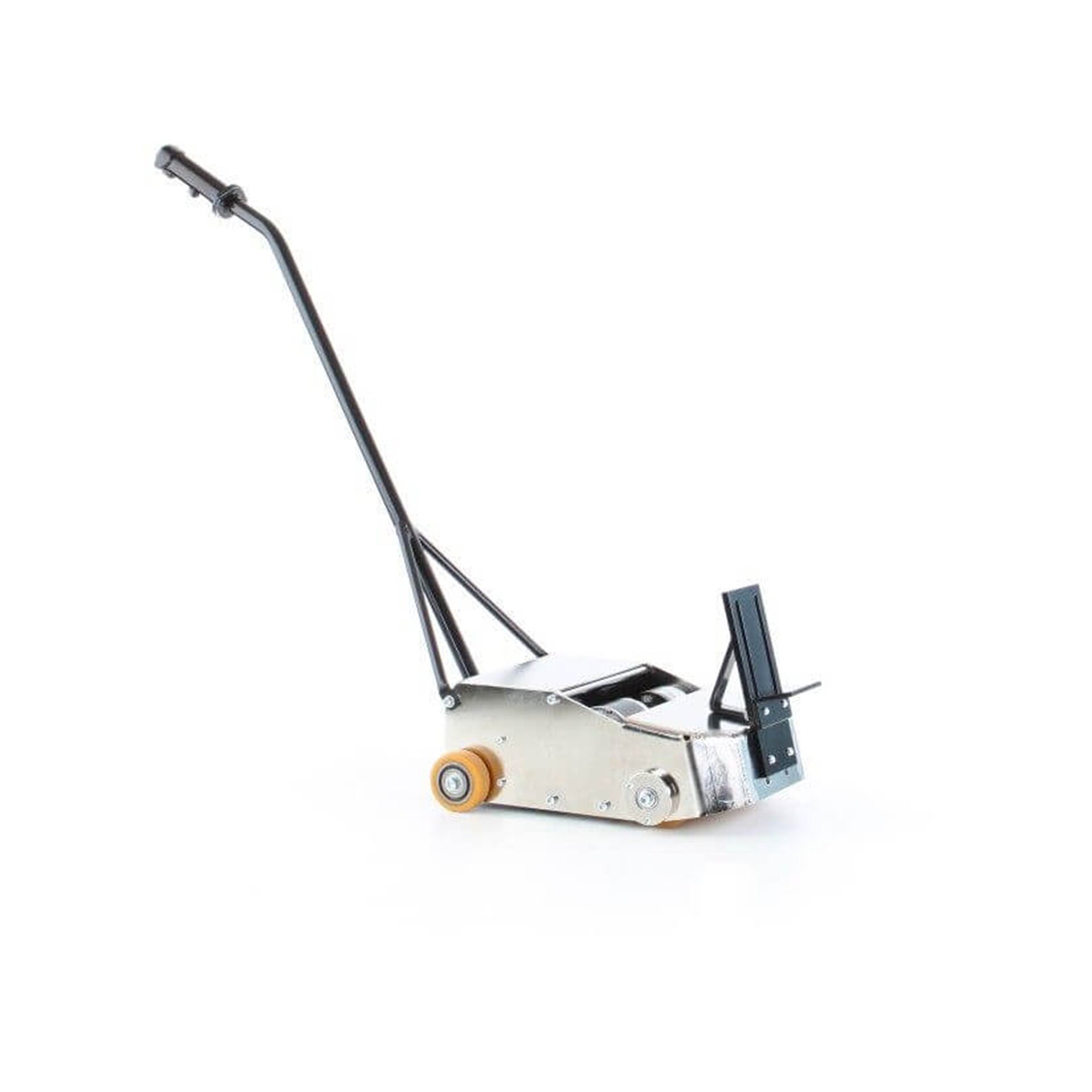

The original Easy Mover manipulators from Sweden are world leaders in the handling of cable drums, cable reels, paper rolls, structures on wheels, but also airplanes.
- Compressed air or battery powered models
- Handling rolls and drums up to 50 tons
- Movement of wagons and machines up to 30 tons
- Movement and maneuvering with vehicles, wagons and machines up to 30 tons
Technical parameters
| Model | capacity | weight | strong | speed | application |
|---|---|---|---|---|---|
| P350B | 10 tons | 14 kg | 300 kp | 23 m/min | paper rolls |
| P1250B | 20 tons | 20 kg | 1200 kp | 25 m/min | paper rolls |
| V350B | 15 t | 14 kg | 300 kp | 23 m/min | construction of buses, trucks, vehicles |
| V1250B | 25 t | 20 kg | 1200 kp | 23 m/min | construction of buses, trucks, vehicles |
| F1500B | 25 t | 19 kg | 1500 kp | 17 m/min | aircraft |
| C1500A | 50 tons | 24 kg | 1500 kp | 15 m/min | drums and coils of cables |
| P350BTW | 10 tons | 25 kg | 300 kp | 29 m/min | roll of tissue paper |
| P1250BTW | 20 tons | 29 kg | 1200 kp | 298 m/min | roll of tissue paper |
