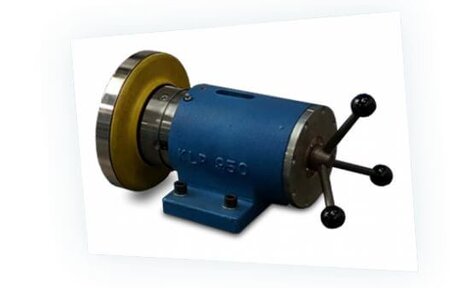

Safety Chucks with sidelay

Specifications

  • very easy to load and unload the roll in and out of the machine by opening the flange and inserting the roll into the jaws
  • they allow the operator to very easily adjust the edge of the unrolled material laterally.
  • foot and flange versions available

Contact

For more information, contact our colleague

Contact

Detailed specifications

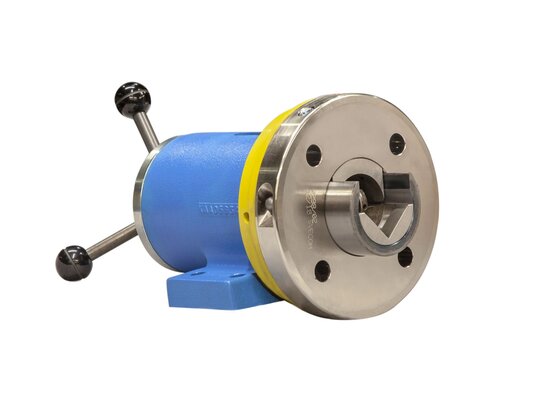

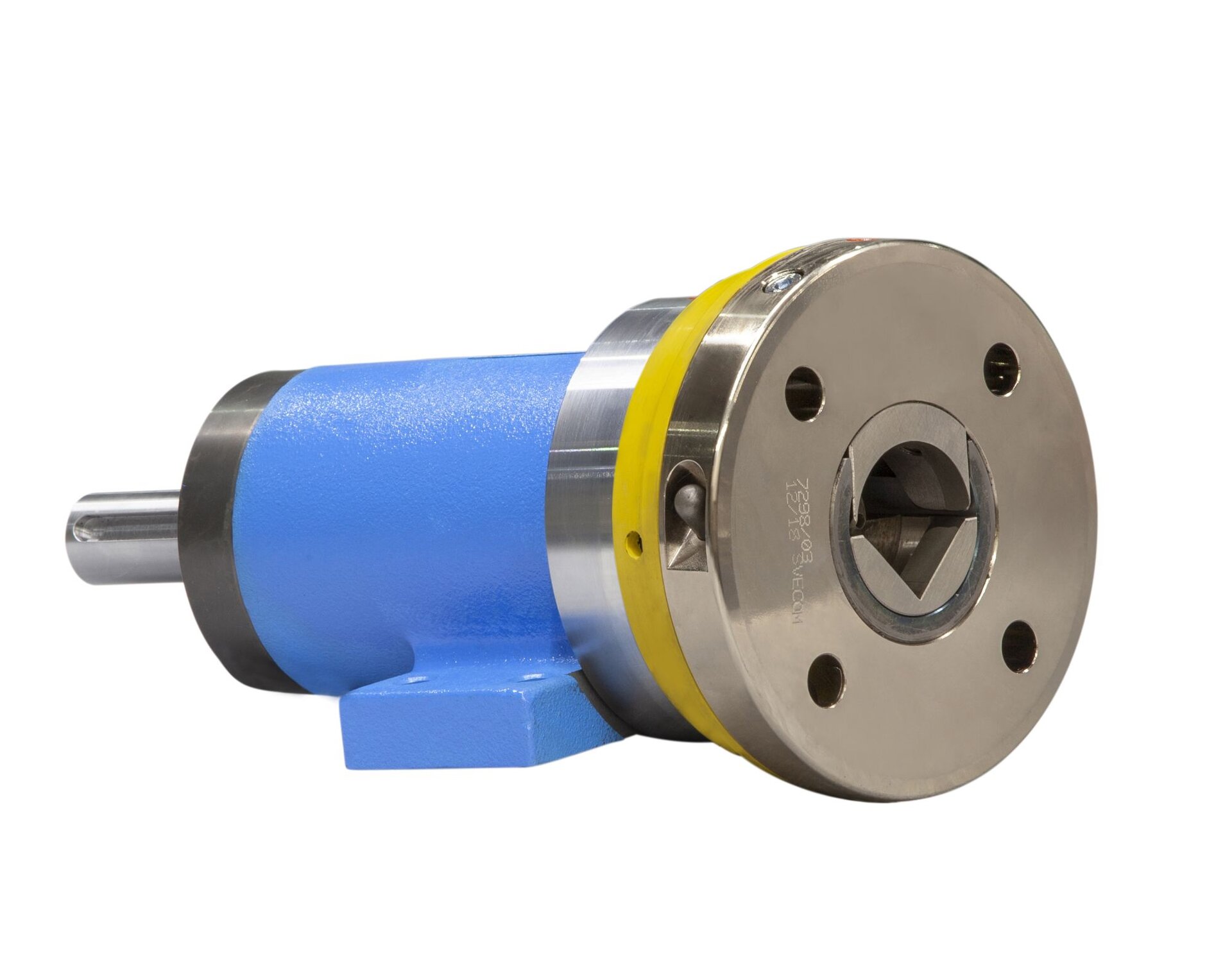

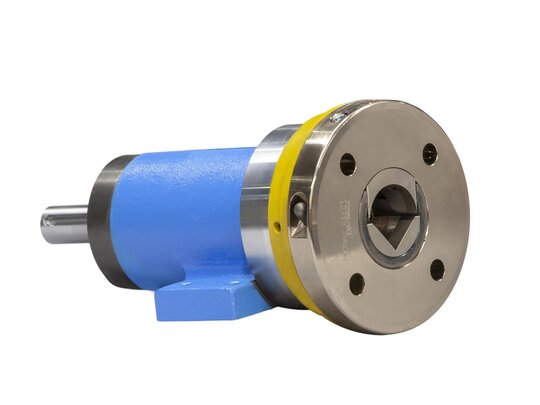

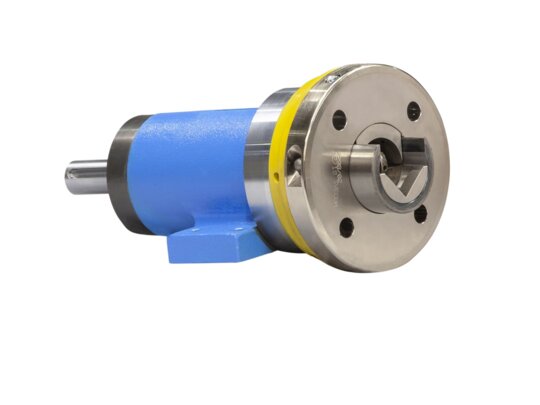

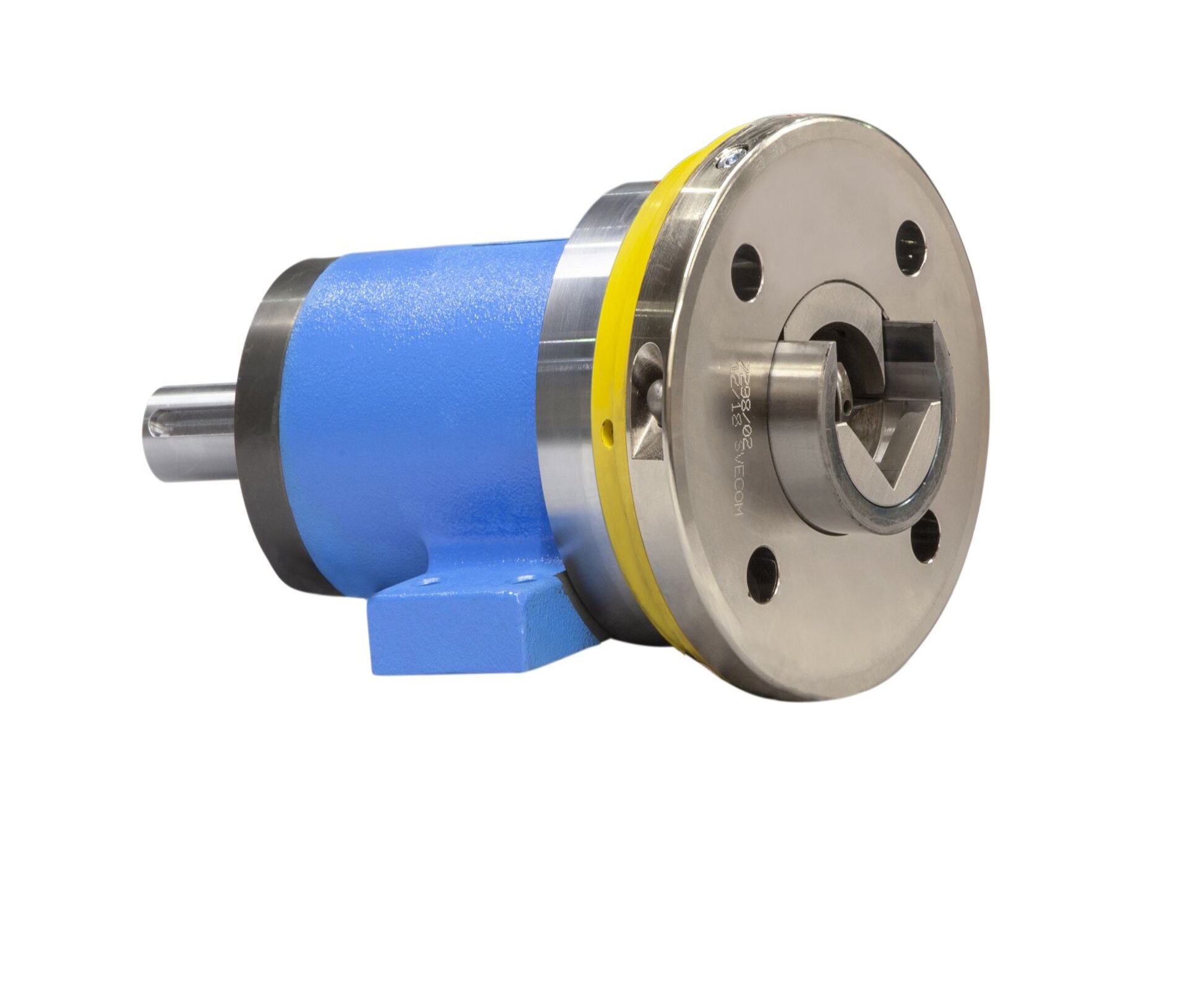

Safety hinged bearings allow very easy loading and unloading of the roll in and out of the machine by opening the flange and inserting the roll into the jaws. One output shaft bearing can be installed for drive or brake. The standard version is a square of 40 x 40 mm, we also have other sizes on offer.

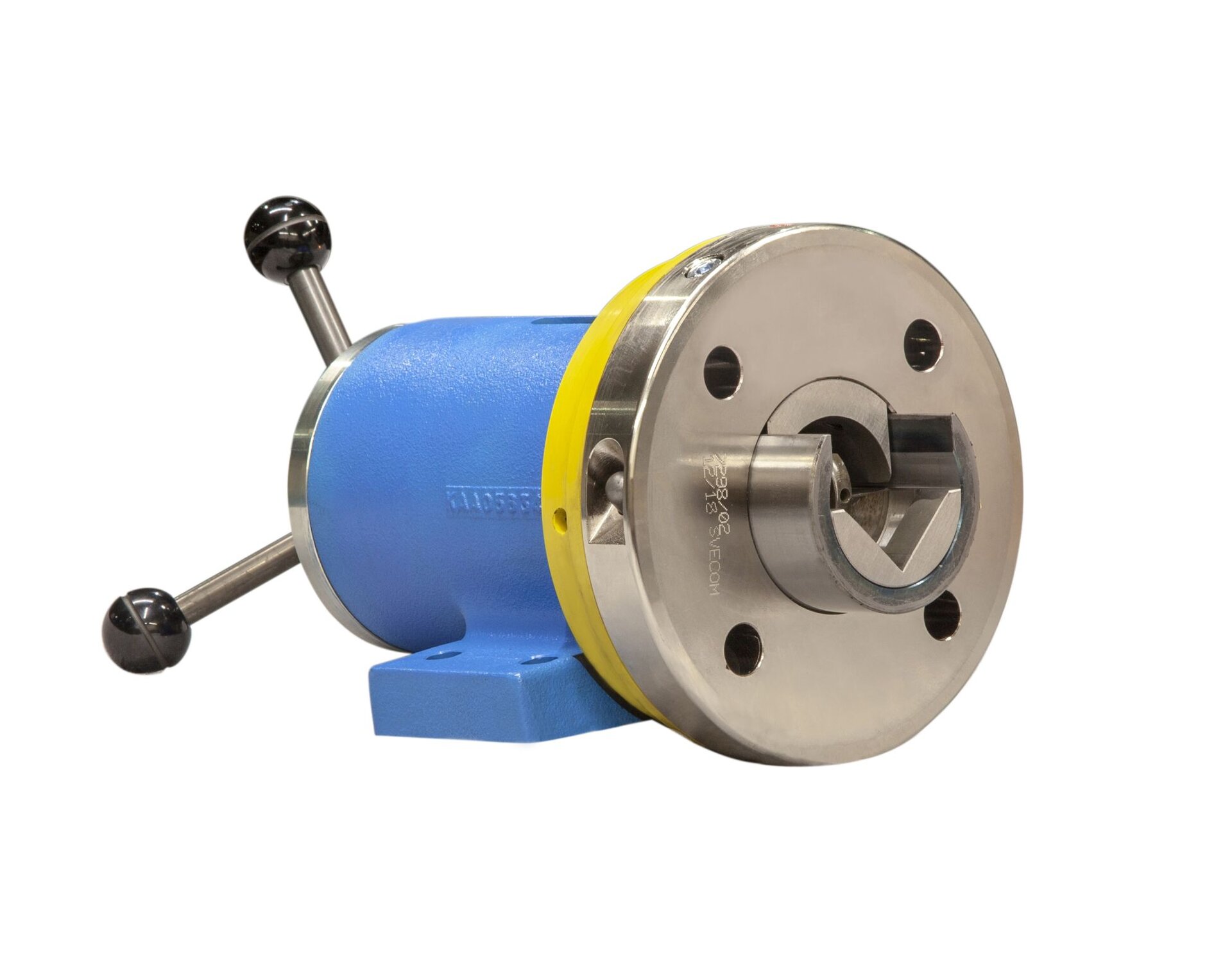

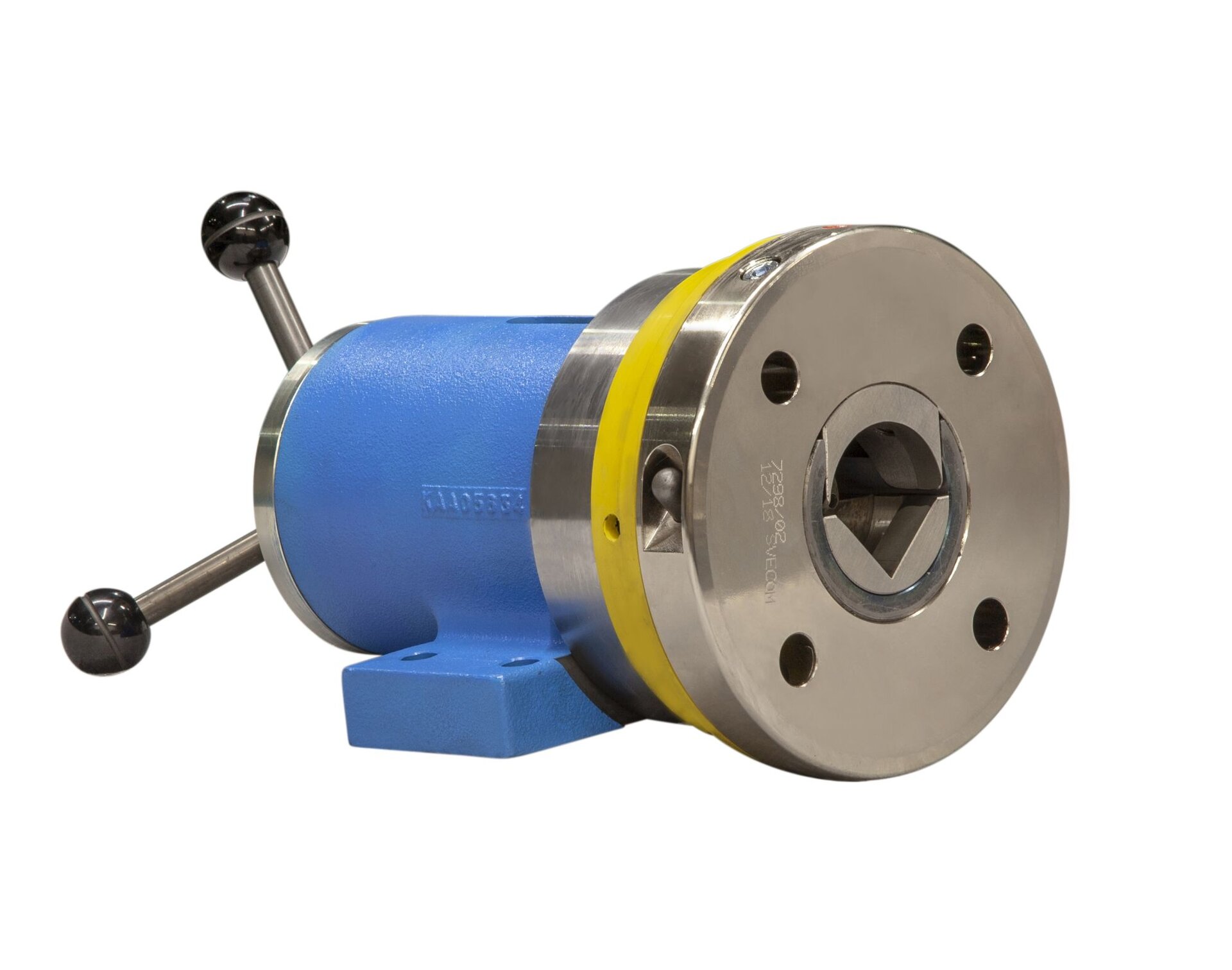

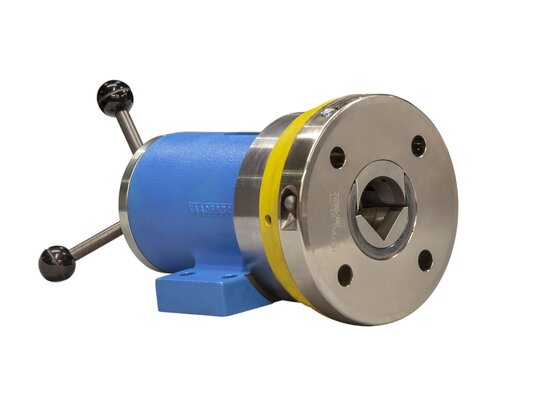

Bearings with lateral movement allow the operator to very easily adjust the edge of the unrolled material laterally. The shift can be in the range of +/- 25 mm or +/- 50 mm. Sometimes these bearings are used when the machine is equipped with non-uniform shafts, where they compensate for differences in the width of the shaft.

For all bearings, foot and flange designs and output shafts are available exactly according to your specifications. Bearings are often used on winding or unwinding stands and wherever torque needs to be transmitted in an axis.

  • Special round-square storage - "VO"

    This fit minimizes vibration and roll jumping at high speeds. The roll unfolds more stably because all the load is concentrated on the circular profile and the torque is transmitted using a square. Such a bearing does not knock and almost does not wear out at all.

    With this type of bearing, the bearing also transfers lateral displacement from one bearing to the other.

  • Automatic head closing

    Tilting bearings, which always close automatically when turned, and thus can 100% prevent the shaft from falling out of the bearing. It is a certified system that meets even the most demanding safety standards.

Technical parameters

ModelCarrying capacityTorqueSavingStorage dimensionØ Output shaftsFlanged - drawingHeels - drawingHeels - 3DFlanged - 3D
951 KLL1600 kg1000NmVO25-30 mm25-35 mmDrawingDrawing3D3D
951KLSL1600 kg1000NmVO40 mm45 mmDrawingDrawing x x
951 KLP3000 kg1300NmVO30-35 mm25-45 mmDrawingDrawing3D3D
951KLSP3000 kg1300NmVO40 mm30-50 mmDrawingDrawing x x
GSC-40-SL1200 kg --35 mmmax. 45 mmDrawingDrawing x x
