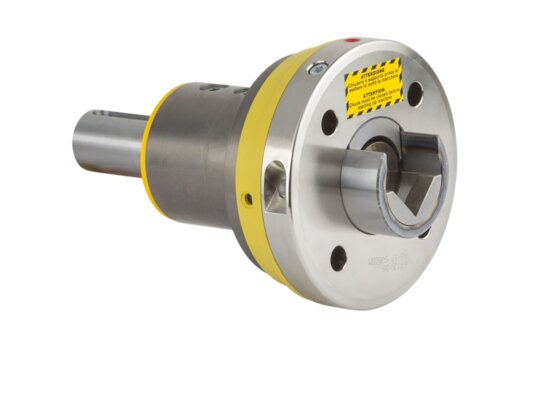

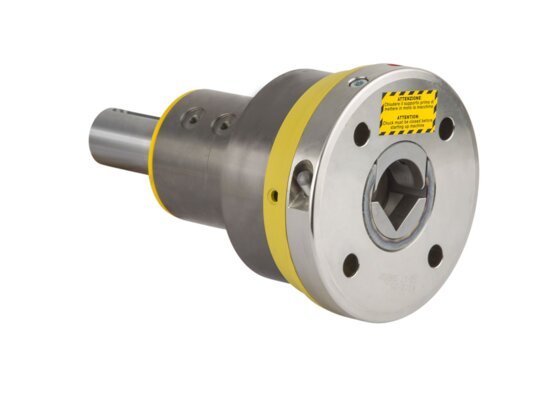

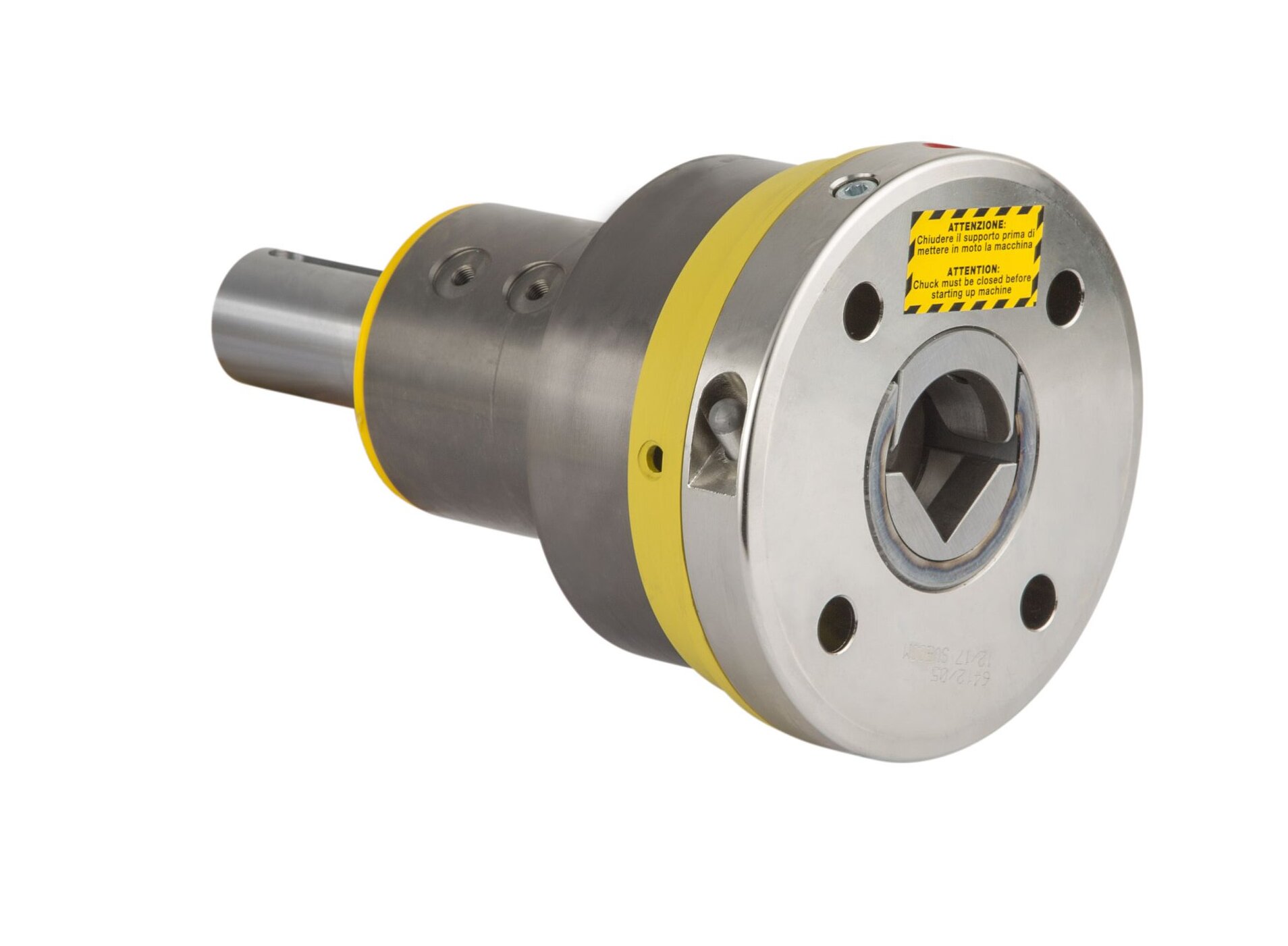

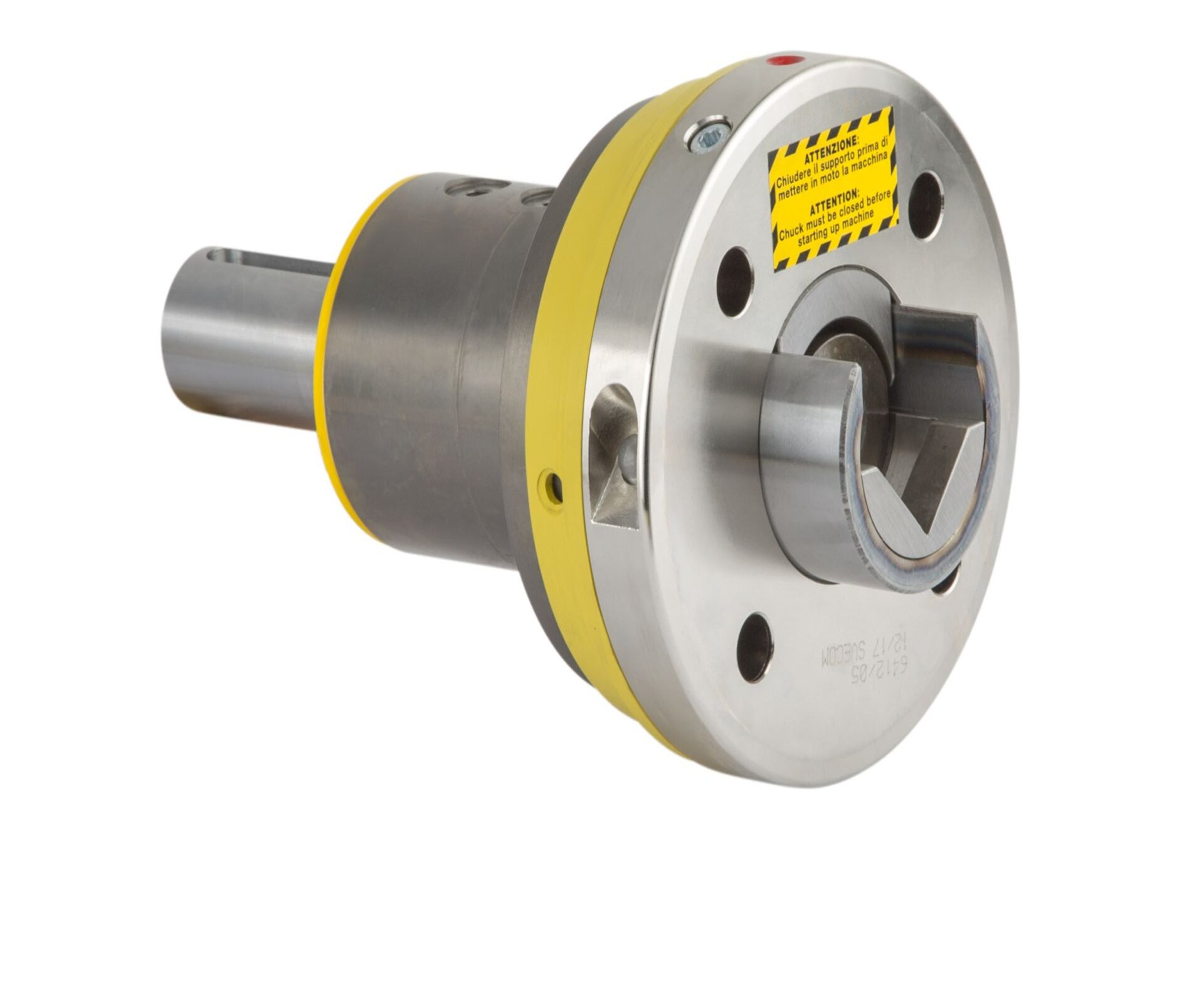

Safety Chucks with sliding flange

Specifications

  • very easy to load and unload the roll in and out of the machine by opening the flange and inserting the roll into the jaws

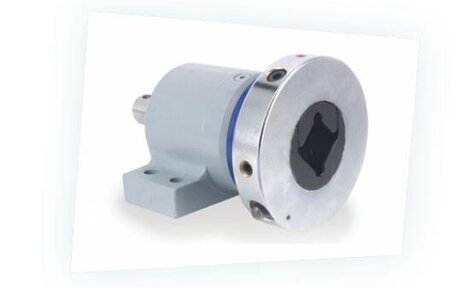

  • foot and flange versions available
  • with this system, the shaft does not jam in the bearing and you do not need to use hammers to open it

Contact

For more information, contact our colleague

Contact

Detailed specifications

Safety hinged bearings allow very easy loading and unloading of the roll in and out of the machine by opening the flange and inserting the roll into the jaws. One output shaft bearing can be installed for drive or brake. The standard version is a square of 40 x 40 mm, we also have other sizes on offer.

For all bearings, foot and flange designs and output shafts are available exactly according to your specifications. Bearings are often used in winding or unwinding stands and wherever torque needs to be transmitted in an axis.

The new pull flange solution is very popular and convenient. By simply pressing the lock, the operator can retract the flange and remove the shaft. With this system, the shaft does not get stuck in the bearing and you do not need to use hammers to open it.

  • Placing the square on the diagonal - "V"

    This fit helps the crane handle the shaft to fit easily into the tilting bearing, making work easier for operators, eliminating downtime and increasing productivity.

  • Special round-square storage - "VO"

    This fit minimizes vibration and roll jumping at high speeds. The roll unfolds more stably because all the load is concentrated on the circular profile and the torque is transmitted by means of a square. Such a bearing does not knock and almost does not wear out at all.

  • Automatic head closing

    Tilting bearings, which always close automatically when turned, and thus can 100% prevent the shaft from falling out of the bearing. It is a certified system that meets even the most demanding safety standards.
